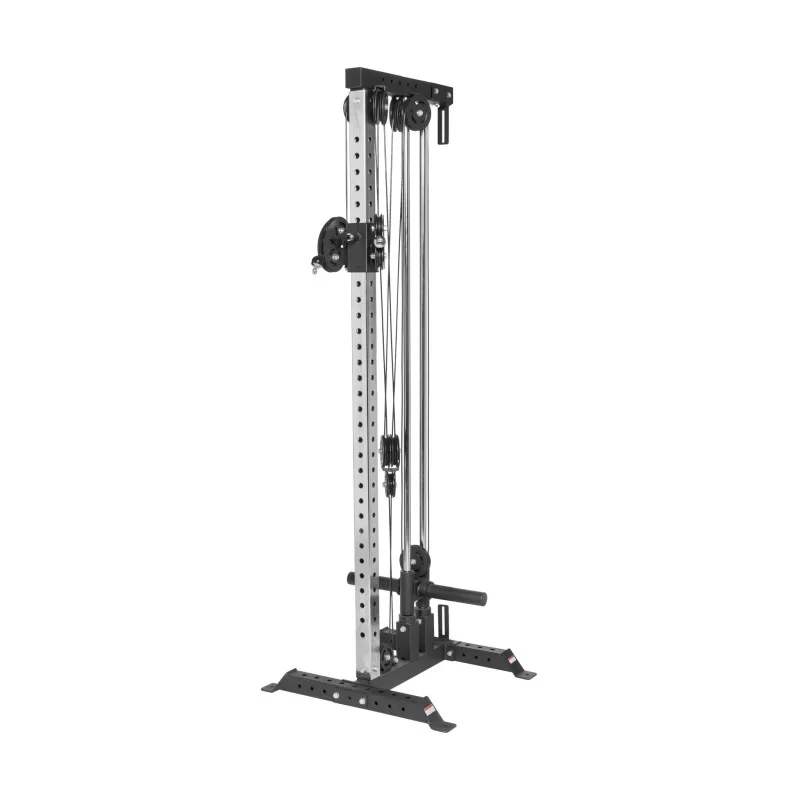

UF Adjustable Pulley Athéna | Plate Loaded

Key features:

• Aluminium bearings, far smoother than nylon bearings.
• Compatible with rack accessories: works with the Athéna range accessories (60 mm x 60 mm), letting you add items such as the Dip attachment, the Leg Extension / Leg Curl, and more.
• Combining two pulleys: two pulleys can be combined to create a multifunction rack, linked by a pull-up bar. You can also add J-cups and safeties for even more options.
• 33 height settings: adjust the pulley height easily to target different muscle groups and tailor your exercises.
• Plate-loading system: enjoy the precision of loading with Olympic (50 mm) or standard (28 or 30 mm) plates using the supplied adapter, while keeping costs down.

Versatility:

• Need more options? The UF adjustable pulley is compatible with 60 x 60 mm rack accessories. Perfect for varying your exercises, use it with attachments:
  • Bilateral cable flyes - Dual cable crossover and high pulley lat pulldown attachment
  • Multi Rowing Plate
  • Leg extension / leg curl
  • Dips
  • Leg roller
  • Landmine
• Two pulleys can be combined to turn them into a multifunction rack / dual cable crossover by linking them with a pull-up bar (you can also add J-cups and safeties to perform compound exercises such as the bench press)

Adjustable pull ratio:

• 2:1 or 1:1 ratio: adapt the resistance to your needs with two pull ratio options. The default 2:1 ratio is perfect for isolation and explosive exercises, while the 1:1 ratio (obtained using our 2-in-1 adapter) lets you load heavy (100 kg loaded equals 100 kg of tension).

Because of its small footprint and its height, the UF adjustable pulley must be stabilised to ensure user safety, either by firmly anchoring it to the floor, the wall or a rack, or by loading its rear upright with plates using the Athena Olympic plate storage or the Athena multi-purpose storage holder. Mounting hardware not included.

No-drill alternative. If it cannot be anchored to the wall or floor, you can stabilise the pulley by loading its rear upright with plates. The rear upright is not included, it is available separately as the Athena optional upright. To do so, fit the Athena Olympic plate storage or the Athena multi-purpose storage holder on the rear upright, then load your plates onto it. This ballast limits the risk of the pulley tipping over. Spread the load evenly and place the heaviest plates at the bottom.

Why choose the UF Adjustable Pulley?

By choosing the UF adjustable pulley, you invest in versatility, safety and performance. Whether you are an experienced athlete or a beginner, this equipment adapts to your needs to maximise your performance with an adaptable, high-precision pulley system.

• Compact dimensions: Length: 76 cm | Width: 76 cm | Height: 206 cm
• Quality materials: 60 mm x 60 mm tubes with 1.6 cm holes, 2.0 mm thick steel
• Maximum cable capacity: 130 kg
• Premium aluminium pulleys
• Pull ratio: 2:1 (default) / 1:1 (with adapter)
• Weight of 42 kg
• 2 handles included

Bonus: maximise the performance and durability of your pulley by lubricating the bearings, the axles and the carriage according to our recommendations.

Exercises and Muscles Worked with the Athéna UF Adjustable Pulley

Frequently asked questions

What are the dimensions and capacity of the Athéna adjustable pulley?

76 cm long, 76 cm wide, 206 cm high (a 228 cm version exists for garages, basements and professional premises, with a rear upright included). Weight of 42 kg, maximum cable capacity of 130 kg, two handles included. Allow around 10 cm of clearance above for assembly.

How many height settings and what pull ratio?

33 height settings. The ratio is 2:1 by default, suited to isolation and explosive exercises, and becomes 1:1 with the 2-in-1 adapter for heavy loading (100 kg loaded corresponds to 100 kg of tension).

Which plates are compatible?

50 mm Olympic plates, and 28 or 30 mm standard plates with the supplied adapter.

Which accessories can be added to the Athéna pulley?

The 60 x 60 mm rack accessories of the Athéna range: bilateral facing flyes and lat pulldown support, multi chest supported row, leg extension / leg curl, dips, leg roller, landmine. Two pulleys can be linked with a pull-up bar to form a multi-function rack, with hooks and safeties as options.

Does the pulley have to be fixed?

No, it is not mandatory. You can anchor it to the floor, a wall or a rack. Without anchoring, load its rear upright (available as the Athena optional upright) with plates, using the Athena Olympic plate storage or the Athena multi-purpose storage holder, to limit the risk of tipping.
