CS-1 Modular Pro Weight Storage

The CS-1 Pro modular weight storage is a urethane-coated steel horn with 30 cm of usable length that mounts tool-free in the uprights, safeties or Jammer arms of a 75 x 75 mm rack.

Technical specifications of the CS-1 Modular Pro Weight Storage

Specifications:

• Compatible with 75 x 75 mm racks with 2.5 cm holes / 3 x 3 inches with 1 inch hole spacing
• Weight: 4.5 kg

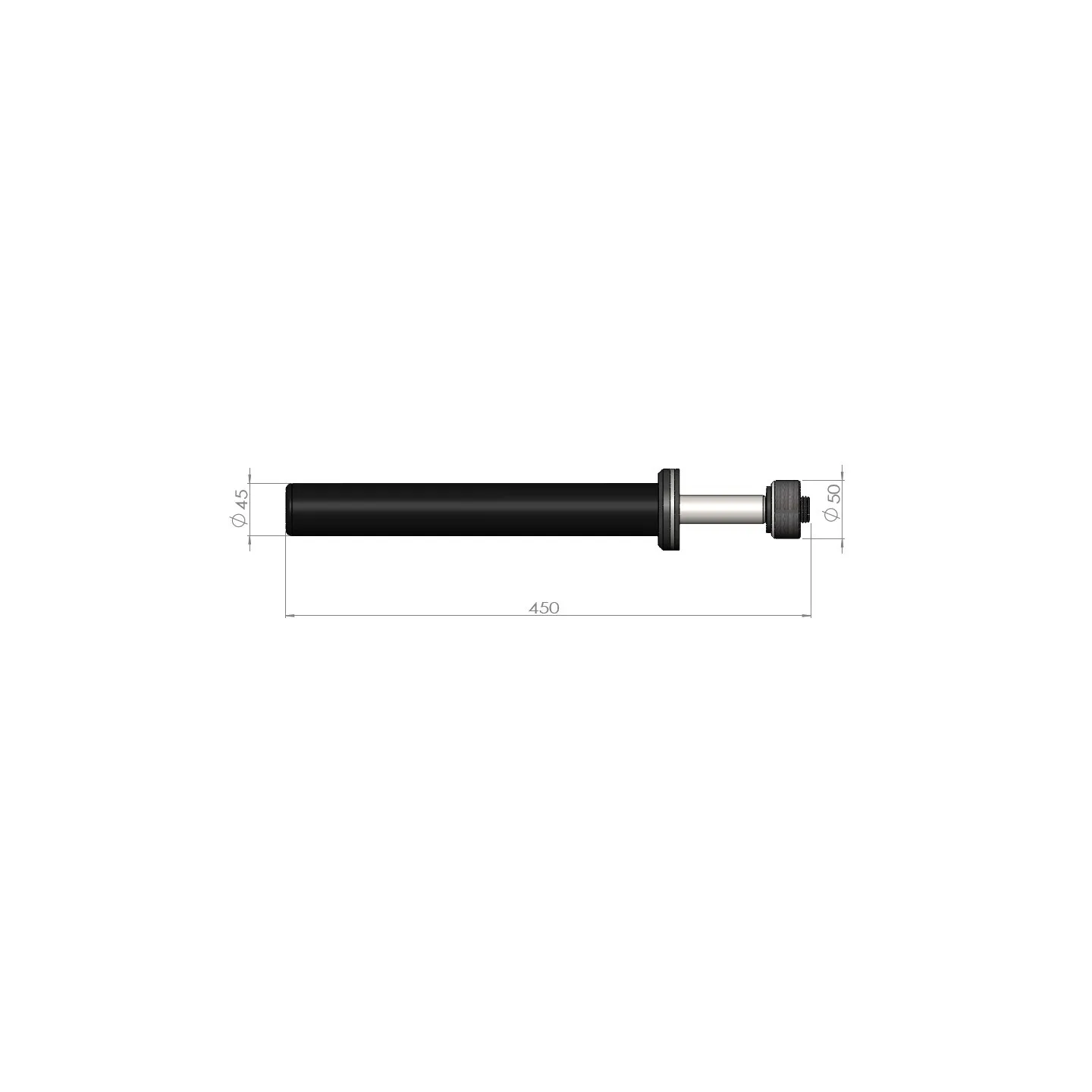

• Overall length: 45 cm
• Usable length: 30 cm
• Material: urethane coated steel
• Sold individually

• Mounting: inserts into upright holes, folding safeties or Jammer arms
• Locking: fast screw system, no tools
• Uses: plate storage, pull-up handles, dip station, Jammer bearing

A storage horn that does more than store

On paper it is a plate horn. In practice it is the most versatile part you can add to a CS-1 cage, because it mounts anywhere there is an upright hole.

Store your Olympic plates on it. Then a pair inserted into your safety bars becomes a pair of neutral grip pull-up handles. Inserted differently, they turn your safeties into a dip station. Mounted on your Jammer arms, they change the resistance curve.

Four functions, one part, and nothing to dismantle to move from one to the next.

Fast locking, no tools and no vibration

The weak point of classic storage horns is play. An accessory that rattles every time you load a plate ends up marking the upright and getting on your nerves.

Here the fast screw system works by hand, without a wrench. Once tightened, the part is locked and the play disappears. Mounting and removal take seconds, which is decisive on an accessory you move from one upright to another depending on the use.

Urethane coated steel

The horn is made of urethane coated steel. The urethane protects your plates from direct contact with steel, which matters especially on calibrated plates or bumper plates whose edges mark easily.

On handle uses, that same coating gives a firm grip where bare steel would be slippery.

Exercises and muscles worked

Beyond storage, a pair opens two movements most cages do not offer as standard. Neutral grip pull-ups (back, biceps), easier on the shoulders than a pronated grip. And dips (lower chest, triceps), once the horns are mounted on the safety bars.

Usage and safety tips

• Tighten the screw system fully before any use, especially in pull-up or dip configuration.
• On load bearing uses, fit two identical parts and check they are at the same level.
• Spread the plates between the sides of the cage so an unanchored rack is not unbalanced.
• Check the urethane coating and the tightness periodically.

Which CS-1 storage should you add to your cage?

Unique benefits of the CS-1 Modular Pro Weight Storage

• Four uses from a single part, storage, pull-ups, dips and Jammer.
• Hand tightened, no tools, and no play once in place.
• Urethane over steel, your plates and your hands both benefit.
• Moves from one upright to another in seconds.

Our guides: the 8 main benefits of a Home Gym.

Frequently asked questions

What are the specifications of the CS-1 Pro modular weight storage?

4.5 kg, 30 cm of usable length, urethane-coated steel, sold individually, compatible with 75 x 75 mm racks with 2.5 cm holes (3 x 3 inch, 1 inch spacing), with a tool-free quick-screw system that eliminates vibration.

Where can it be installed?

In the holes of the rack uprights, of the folding safety bars or of the Jammer arms, and it moves from one upright to another in seconds.

What is it for besides storage?

A pair inserted into the safeties or the uprights serves as handles for neutral-grip pull-ups or as a dip station, as steps to reach the pull-up bar, as balance handles for Hatfield squats and calf raises, and as a support on the Jammer arms to change the resistance curve. It also stores bands, chains and accessories.

What safety advice applies?

Tighten the screw system fully, especially in a pull-up or dip configuration, use two identical pieces at the same level for load-bearing uses, spread the plates on both sides of an unanchored rack, and check the coating and the tightness periodically.
